Beschreibung
Produktbeschreibung

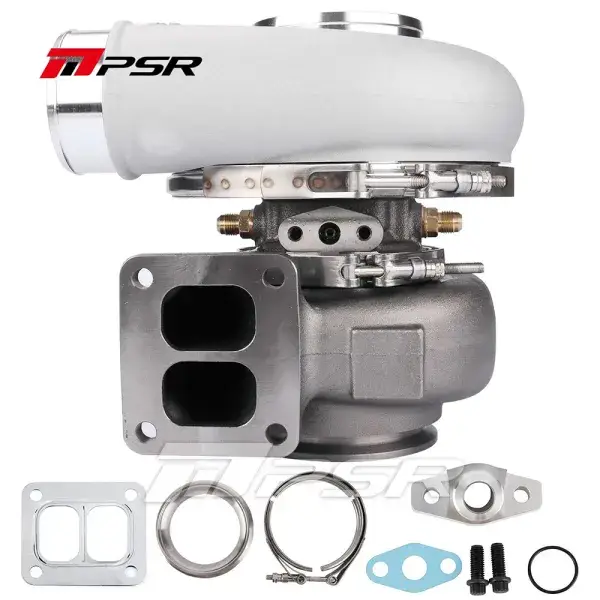

- CNC Machined Bearing Housing with The FIN COOLING DESIGN
- Dual Ceramic Ball Bearing Systems
- 80mm, 85mm, 88mm, 92mm, and 98mm Compressor Wheel Options
- Billet Compressor Wheels with Extended Tip Technology
- 102/91mm and 109/99mm Turbine Wheel Options
- STD and T51R MOD in option for Compressor Cover with Speed Sensor Port integrated
- -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box
- Hot engine shut down is strictly prohibited
- HP rating: 950 – 2000
- Recommending Engine Displacement: 3.0-8.0L
Additional Information:
- Compressor Wheel: 92x122mm 7+7 blade
- Turbine Wheel: 102x91mm
- Compressor Housing: T51R Mod
- Compressor Inlet: 5,5 inch Slip-Fit
- Compressor Outlet: V-band
- A/R: 1.15
- Turbine Housing: T6 Divided
- Turbine Housing Outlet: 3/4 Marmon V-band
- Oil Feed Port 1/4NPT
- Oil Drain Std T6 drain Flange
