Beschreibung
Produktbeschreibung

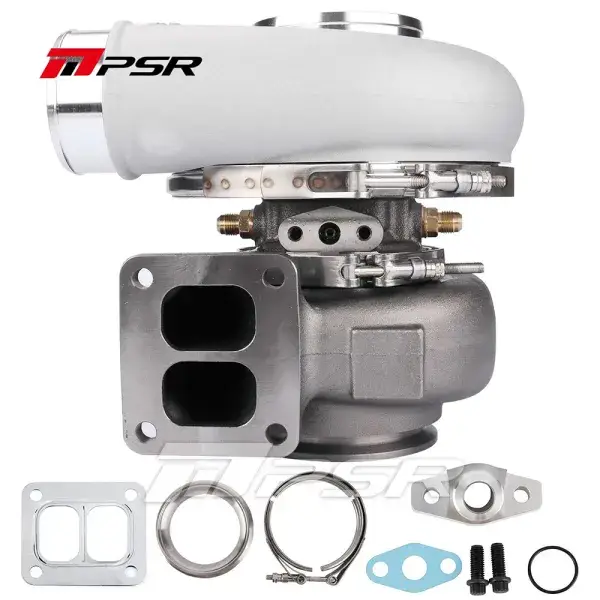

- CNC Machined Aluminum Bearing Housing with The FIN COOLING DESIGN
- G series design 9 Blade Inconel 713 turbine wheel for improved gas flow ability and reduced turbo lag
- Dual Ceramic Ball Bearing Systems
- Curved Point Milled Billet Compressor Wheel with large blade area for better boost response
- HP Rating 750 – 1350
Additional information
- Compressor Wheel: 85x120mm 6+6 blade
- Compressor Inlet: 5.5 inch Slip-Fit
- Conpressor Outlet: V-Band
- Turbine Wheel: 96x88mm 9 blade
- Turbine Housing: Standard
- A/R: 1.32
- Turbine Housing Inlet: T6 Divided
- Turbine Housing Outlet: 3/4 Marmon V-band
- Oil Feed Port 1/4NPT
- Oil Drain Std T6 drain Flange
- -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box
