Beschreibung
Produktbeschreibung

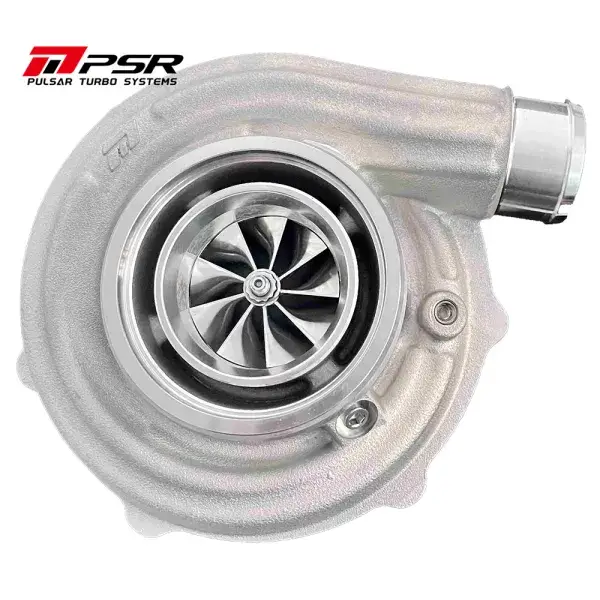

- PTA series Turbine wheel with slim nose and hub for reduced weight and faster spool-up
- Decentered blades on turbine wheel for improved gas flow ability and reduced turbo lag
- Newly designed Anti-Surge compressor housings with integrated speed sensor port and boost reference port for improved performance monitoring and control
- Dual ball bearing system for improved durability, stability, and reduced friction resulting in enhanced performance and longevity
Additional Information
- PTG series Flank Milled Compressor Wheel: 54x67mm
- PTA series Turbine Wheel: 54x49mm
- Compressor Housing: Standard
- Compressor Inlet: 3inch Hose
- Compressor Outlet: 2inch Hose
- Oil Feed: -4AN to the Oil Restrictor
- Oil Drain: Std T3 Oil Drain Flange
- Without Turbine Housing
