Beschreibung
Produktbeschreibung

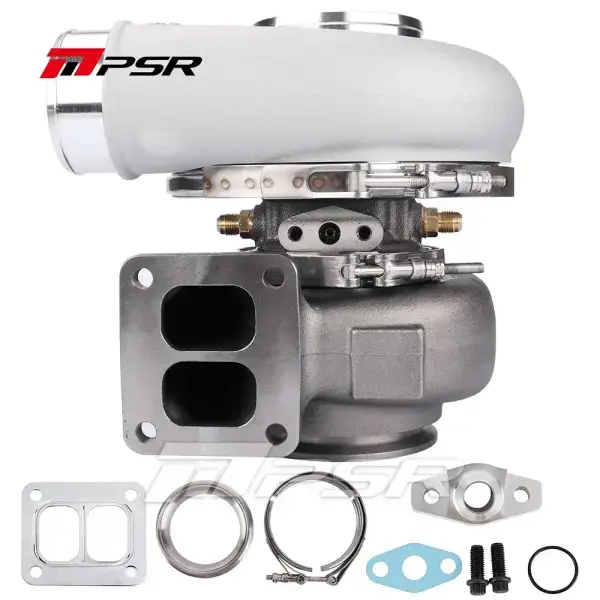

- CNC Machined Aluminum Bearing Housing with The FIN COOLING DESIGN
- G series design 9 Blade Inconel 713 turbine wheel for improved gas flow ability and reduced turbo lag
- Dual Ceramic Ball Bearing Systems
- Billet Compressor Wheels with Extended Tip Technology
- HP Rating 750 – 1550
Additional information
- Compressor Wheel: 88x117mm 7+7 blade
- Compressor Inlet: 5.5 inch Slip-Fit
- Conpressor Outlet: V-Band
- Compressor Housing: T51R Mod
- Turbine Wheel: 96x88mm 9 blade
- A/R: 1.32
- Turbine Housing Inlet: T6 Divided
- Turbine Housing Outlet: 3/4 Marmon V-band
- Oil Feed Port 1/4NPT
- Oil Drain Std T6 drain Flange
- -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box
