Beschreibung
Produktbeschreibung

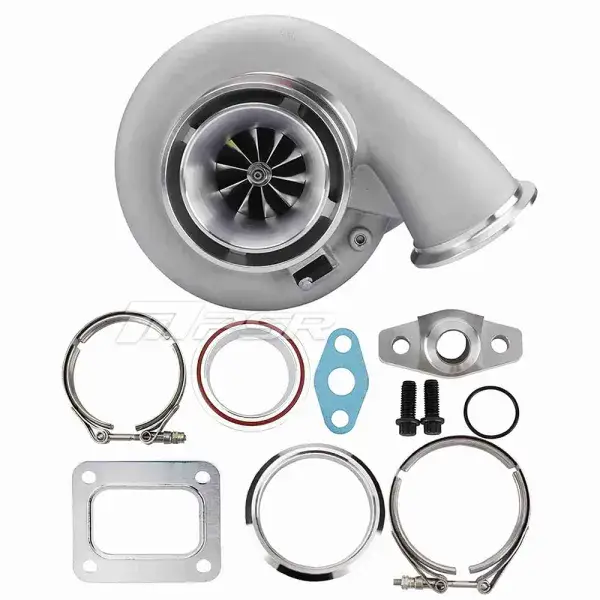

- Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
- 13 Blade PTG-Aero billet compressor wheel 88mm inducer and 120mm exducer produces up to 1900 hp
- 9 Blade PTG-Aero Inconel 713c turbine wheel with more turbine flow
- Fin-cooled aluminum center housing, lighter weight
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
- Water fittings included with the super core
- Installation Hardware: 4 inch flange kit for Comp. Outlet, T6 Gasket/3.5 inch flange kit for Turb. Inlet, 5 inch flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
- Oil Feed Fitting needs to be bought separately
Additional Information
- Curved Point Mill Compressor Wheel: 88.5x120x127.93mm, 13 blade
- Turbine Wheel: 99x94mm
- Compressor Inlet: 6 inch Hose
- Compressor Outlet: 4 inch V-Band
- Compressor: Standard
- A/R: .88
- Turbine Inlet: T6 Open
- Turbine Outlet: V-Band
- A/R: 1.08
- Oil Feed: See graphic
- Oil Drain: See Graphic
